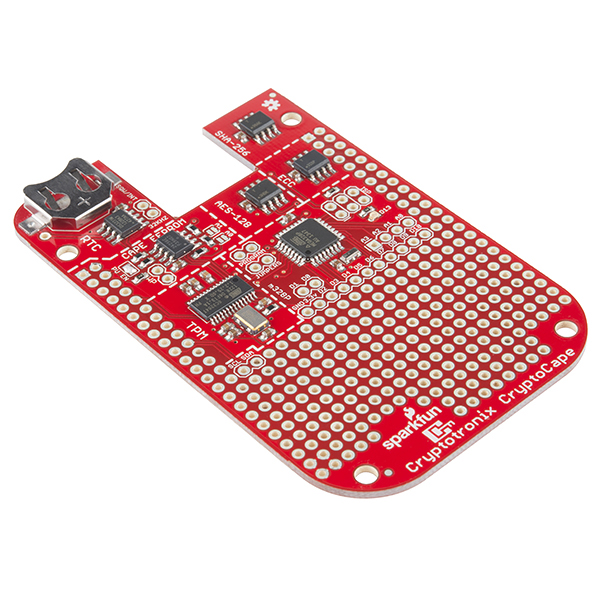

cryptocape_sparkfun

What is the CryptoCape?

The CrytpoCape allows the maker community easy access to specialized commercial crypto hardware. If you need to add security to your project or you want to learn more about embedded security the CryptoCape adds encryption and authentication options.

The firmware for this cape is included in the most recent BeagleBone Black images and pins are setup automatically at boot.

See the slides from the HOPEX talk featuring the CryptoCape.

The CryptoCape was on Hackaday!

Watch Josh talk about the CryptoCape to Hackaday at HOPE X.

BeagleBone for Secret Agents

This book provides projects for BeagleBone using Tor, GPG, and Off-the-Record. Chapter 3 is devoted to the CryptoCape where you will learn how to combine a fingerprint sensor, the onboard ATmega328p, and the crypto chips to make a biometric authentication system.

Available on Amazon and from the publisher.

tpm_board

Trusted Platform Module

With the Atmel 1.2 TPM, you can:

- Configure ‘secure boot’ on the BeagleBone with libSboot to ensure that the operating system boots in a trusted manner.

- Bind or seal other cryptographic keys on the BeagleBone with the TPM, requiring the TPM to be present to unlock them.

- Create the Storage Root Key (SRK) and create your own chain of keys (up to 2048 bit RSA) using existing open sources software such as TrouSers and tcsd.

ecc108_board

ECDSA Authenticator

With the Atmel ECC108 you can:

- Ensure the authenticity and integrity of data or firmware with ECDSA signatures using the NIST curves P256, B283, or K283.

- Generate an ECDSA private key in the device that could be used in part of a X.509 certificate.

sha204_board

SHA-256 Authenticator

With the Atmel SHA204 you can:

- Create 256 bit keys that can be used in keyed Message Authentication Codes (MACs), or HMAC, to prove the authenticity of the device.

- Implement an anti-counterfeiting system with the exchange of nonces and MACs between other embedded devices.

aes132_board

Encrypted EEPROM

With the Atmel AES132 you can:

- Store up to 32Kb of encrypted data in the internal EEPROM with the AES-128-CCM algorithm.

- Encrypt up to a 32 byte packet at a time with AES-128-CCM to return to the BeagleBone with an internal key.

rtc_board

RTC with Battery

With the Maxim Integrated DS3231M you can:

- Have a redundant, trusted time source on the BeagleBone for offline operations.

- Provide a dedicated battery to ensure the BeagleBone’s clock is accurate without an external time source.

atmega328p_board

ATmega328p

With the Atmel ATmega328p you can:

- Extend the CryptoCape with your own Arduino compatible (3.3V) projects.

- Upload sketches from the BeagleBone to the ATmega328p without an external programmer.

- As an extra security feature, the sketches can only be uploaded if the program jumpers are installed making it difficulty to change the sketch from a software vulnerability.

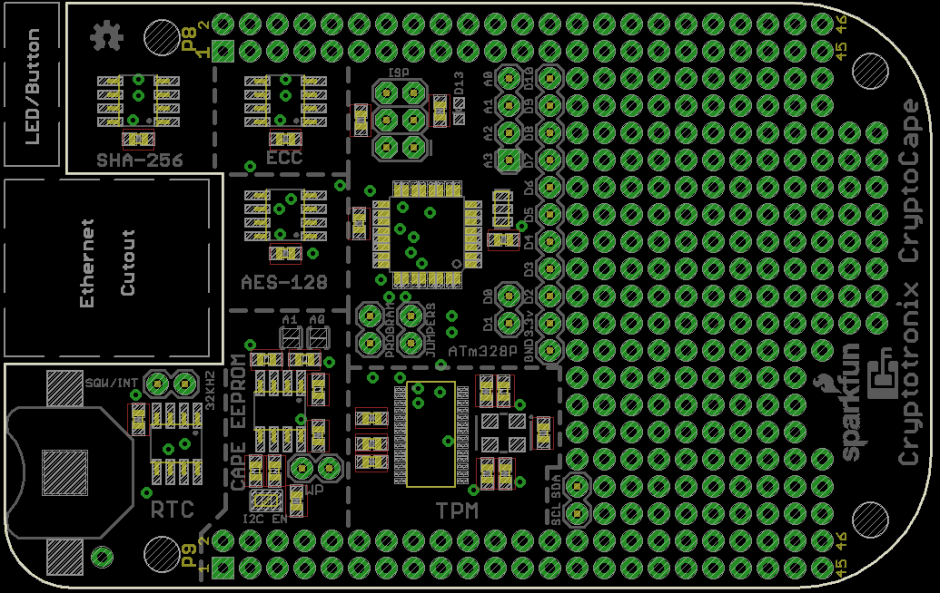

cryptocape

Extensible

The CryptoCape is designed to be the starting point for your security application. ¬†We’ve left plenty of perforated board space and broken out most of the ATmega I/O to add your own design.

See the eLinux page for links to the software and board description. You can buy the CryptoCape from SparkFun and be sure to see the hookup guide, which explains how to use the board. I also have a series of screencasts on using the software associated with the CryptoCape.
